Aparavi Query Language - SELECT Statement

The AQL SELECT statement is used to query your Aparavi data. The data returned is a combination of the independent aggregator's files. The system runs your query against each aggregator, collects the results, and then returns a combined result.

SELECT column_list
  [FROM table]
  [WHERE criteria]
  [WHICH criteria]
  [HAVING criteria]
  [GROUP BY column_list]
  [ORDER BY column_list]
  [LIMIT count]
  [OFFSET count]

SELECT

The SELECT clause defines which columns you want to pull from the Aparavi system.

SELECT column[,column]

To give a column header a more user-friendly name, you can use an AS alias

SELECT column AS name[,column AS name]

To select all columns rather than specific columns, you can use the asterisk.

SELECT *

DISTINCT

The DISTINCT keyword is a modifier to the SELECT statement. When used, only unique rows will be returned.

SELECT DISTINCT column,column

Example

SELECT name AS File_Name,classification AS Classification_Name

This statement will return

The "name" and "classification" Aparavi columns
The column headers will be "File_Name" and "Classification_Name"

FROM

Unlike most SQL implementations, AQL does not require a FROM clause. When an AQL query is run, the SELECT statement is run against all data below it in the tree. If you run it against the Aparavi root, all data will be included, whereas if you run it against a single aggregator, only data within that agregator's system will be included. You can use the STORE function to explicitly define where the data source.

To query data from the current node, no FROM clause is required.

SELECT column

It can be used for readability using the STORE function without any parameters. The code below is equivalent to the one above.

SELECT column
  FROM STORE

STORE

The STORE function is used to define what Aparavi Node should be the parent node for included data.

STORE [(Aparavi_Node)]

The STORE function takes a STRING parameter which defines what node in the Aparavi System tree should be included in the resulting data set. All data below that node will be included.

SELECT column
  FROM STORE('Node/Path/To/Directory')

When entering the Aparavi_Node parameter, make sure you use the forward slash ( / ) vs the backslash ( \ ).
The path names are not case sensitive - Node/Path/To/Directory is the same as node/path/TO/DiReCtOrY

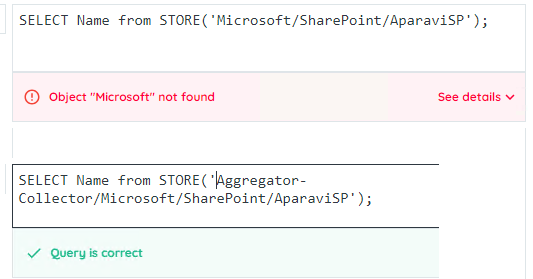

If the path you enter is invalid, the AQL parser will give you an error.

Example

SELECT name AS File_Name,classification AS Classification_Name

FROM STORE('Aggregator-Collector/Microsoft/SharePoint/AparaviSP')

This statement will return

The "name" and "classification" Aparavi columns
From the AparaviSP node
The column headers will be "File_Name" and "Classification_Name"

WHERE

The WHERE clause is used to filter the returned rows to only rows where specific conditions are met.

SELECT column_name
  WHERE [condition]

Multiple conditions can be combined following standard logic constructions and operators.

SELECT column_name
  WHERE
    (column1=true AND
    column2=true) OR
    (column3=true)

SQL OPERATORS

Arithmetic

+	Add	3+2 [=5]
-	Subtract	7-5 [=2]
*	Multiply	2*10 [=20]
/	Divide	12/3 [=4]
%	Modulo	5%2 [=1]

Comparison

=	Equal to	10=10
>	Greater than	10>5
<	Less than	5<10
>=	Greater than or equal to	10>=10, 10>=5
<=	Less than or equal to	5<=5, 5<=10
<>	Not equal to	5<>10

Logical

AND	TRUE if all the conditions separated by AND is TRUE	roses=red AND violets=blue
BETWEEN	TRUE if the operand is within the range of comparisons	5 BETWEEN 1 AND 10
IN	TRUE if the operand is equal to one of a list of expressions	red IN (red, yellow, blue)
LIKE	TRUE if the operand matches a pattern % = 0 to multiple characters, _ = single character	red LIKE 'r%d' [rd, red, road] red LIKE 'r_d' [red, rid]
NOT	Displays a record if the condition(s) is NOT TRUE	NOT roses=blue
OR	TRUE if any of the conditions separated by OR is TRUE	roses=red OR roses=yellow
( )	Controls order of operations and AND/OR combinations	roses=red OR (roses=yellow and state=Texas)

Example

SELECT name AS File_Name,classification AS Classification_Name

FROM STORE('Aggregator-Collector/Microsoft/SharePoint/AparaviSP')

WHERE name LIKE '%project%' OR name LIKE '%.mpp' OR name LIKE '%.mpt'

This statement will return

The "name" and "classification" Aparavi columns
From the AparaviSP node
The column headers will be "File_Name" and "Classification_Name"
For Microsoft Project Files or other files with project in the name

WHICH CONTAIN

WHICH CONTAIN is a special AQL clause that queries the Aparavi Word Database. This combines the Aparavi File data with the Word Database to provide context filters against the data. This clause is frequently modified with the modifiers listed below.

Unlike the WHERE clause, WHICH CONTAIN clause filters operate against the entire record. Instead of column_name=criteria it is record has criteria
WHICH CONTAIN and WHICH CONTAINS can be used interchangeably.
CONTAINING can also be used in the same way, however the WHICH clause keyword is unneeded.
Punctuation is ignored in the word database.

SELECT column_name
  WHICH CONTAIN word

is the same as

SELECT column_name
  WHICH CONTAINS word

is the same as

SELECT column_name
  CONTAINING word

WHICH CONTAIN 'IP'
WHICH CONTAINS 'IP'
CONTAINING 'IP'

NEAR

The NEAR keyword modifies the WHICH CONTAIN clause. When the WHICH CONTAIN clause identifies a word, NEAR adds to it by searching for additional words near the first identified word.

SELECT column_name
  WHICH CONTAIN word AND NEAR another

It also works with multiple values when surrounded by parentheses and separated by commas.

SELECT column_name
  WHICH CONTAIN word AND NEAR (another,different,word)

WHICH CONTAIN 'IP' AND NEAR 'server'
WHICH CONTAIN 'IP' AND NEAR ('server','network')

SYNONYM

The SYNONYM keyword modifies the WHICH CONTAIN clause. SYNONYM looks for all words that are synonyms to word.

AQL uses the Merriam-Webster dictionary to identify synonyms.

SELECT column_name
  WHICH CONTAIN SYNONYM (word)

WHICH CONTAIN SYNONYM ('doctor')

STEM

The STEM keyword modifies the WHICH CONTAIN clause. STEM looks for all words that are share the root to the given word.

AQL uses the Merriam-Webster dictionary to identify stems.

SELECT column_name
  WHICH CONTAIN STEM(word)

WHICH CONTAIN STEM ('drive')

PHRASE

The PHRASE keyword modifies the WHICH CONTAIN clause. PHRASE looks for a full phrase instead of single words.

SELECT column_name
  WHICH CONTAIN PHRASE(phrase)

WHICH CONTAIN PHRASE ('roses are red')

OPERATORS

ALL	TRUE if all of the evaluations meet the condition
ANY	TRUE if any of the evaluations meet the condition
NONE	TRUE if none of the evaluations meet the condition

Example

SELECT name AS File_Name,classification AS Classification_Name

FROM STORE('Aggregator-Collector/Microsoft/SharePoint/AparaviSP')

WHERE name LIKE '%project%' OR name LIKE '%.mpp' OR name LIKE '%.mpt'

WHICH CONTAIN ALL SYNONYM ('start') NEAR ('date')

This statement will return

The "name" and "classification" Aparavi columns
From the AparaviSP node
The column headers will be "File_Name" and "Classification_Name"
For Microsoft Project Files or other files with project in the name
Which discuss a starting or beginning date

GROUP BY

The GROUP BY clause groups rows that have the same values into summary rows.

Any column in the SELECT clause must be an AGGREGATE FUNCTION or included in the GROUP BY clause.
If the GROUP BY clause is omitted but AGGREGATE FUNCTIONs are included, the aggregates will be for the entire result set vs just by group.

COUNT

The COUNT function returns the number of rows returned in the GROUP.

SELECT COUNT (column_name1),column_name2

GROUP BY column_name2

Will return the COUNT of rows for each column_name2

If the GROUP BY is omitted

SELECT COUNT (column_name1)

Will return the total COUNT of rows

If the modifier DISTINCT is included

SELECT DISTINCT COUNT (column_name1)

Will return the unique column_name1 values across all the rows

SUM

The SUM function returns the sum of a numeric column in the GROUP.

SELECT SUM (numeric_column) AS name, column_name

GROUP BY column_name

Will return the sum of numeric_column for each column_name

AVG

The AVG function returns the average (mean) of a numeric column in the GROUP.

SELECT AVG (numeric_column) AS name, column_name

GROUP BY column_name

Will return the mean of numeric_column for each column_name

MIN

The MIN function returns the minimum value of a column in the GROUP.

SELECT MIN (numeric_column) AS name, column_name

GROUP BY column_name

Will return the minimum of numeric_column for each column_name

MAX

The MAX function returns the maximum of a column in the GROUP.

SELECT MAX (column_name1) AS name

Will return the maximum of column_name1

Example

SELECT COUNT(classification) as Classification_Count,classification AS Classification_Name

FROM STORE('Aggregator-Collector/Microsoft/SharePoint/AparaviSP')

WHERE name LIKE '%project%' OR name LIKE '%.mpp' OR name LIKE '%.mpt'

WHICH CONTAIN ALL SYNONYM ('start') NEAR ('date')

GROUP BY classification

This statement will return

The "classification" Aparavi column
And the count of records by each "classification"
From the AparaviSP node
The column headers will be "Classification_Count" and "Classification_Name"
For Microsoft Project Files or other files with project in the name
Which discuss a starting or beginning date

HAVING

The HAVING clause is used to filter the returned summaries to only summaries where specific conditions are met. This is in contrast to the WHERE clause which looks at the detail rows, HAVING is looking only at the AGGREGATE FUNCTION type columns. It relies on the ALIAS of the column.

SELECT AGG_FUNCTION(column_name1) AS alias,column_name2
  GROUP BY column_name2
  HAVING alias>35

Example

SELECT COUNT(classification) as Classification_Count,classification AS Classification_Name

FROM STORE('Aggregator-Collector/Microsoft/SharePoint/AparaviSP')

WHERE name LIKE '%project%' OR name LIKE '%.mpp' OR name LIKE '%.mpt'

WHICH CONTAIN ALL SYNONYM ('start') NEAR ('date')

GROUP BY classification

HAVING Classification_Count>=100

This statement will return

The "classification" Aparavi column
And the count of records by each "classification"
From the AparaviSP node
The column headers will be "Classification_Count" and "Classification_Name"
For Microsoft Project Files or other files with project in the name
Which discuss a starting or beginning date
And the count of each "classification" is at least 100

ORDER BY

The ORDER BY clause is used to sort the results in ascending (ASC ) or descending (DESC ) order. This is generally a presentation preference vs altering the result set itself.

When not specified, ascending (ASC ) is implied.

SELECT column[,column]
  ORDER BY column[order_direction]

Example

SELECT COUNT(classification) as Classification_Count,classification AS Classification_Name

FROM STORE('Aggregator-Collector/Microsoft/SharePoint/AparaviSP')

WHERE name LIKE '%project%' OR name LIKE '%.mpp' OR name LIKE '%.mpt'

WHICH CONTAIN ALL SYNONYM ('start') NEAR ('date')

GROUP BY classification

HAVING COUNT(classification)>=100

ORDER BY COUNT(classification) DESC

This statement will return

The "classification" Aparavi column
And the count of records by each "classification"
From the AparaviSP node
The column headers will be "Classification_Count" and "Classification_Name"
For Microsoft Project Files or other files with project in the name
Which discuss a starting or beginning date
And the count of each "classification" is at least 100
The full result set will be sorted by the count of each "classification" in descending order

LIMIT

The LIMIT clause is used to specify the maximum number of records to return.

When used with ORDER BY , the sort order will be applied first.

SELECT column[,column]
  LIMIT [row_count]

or with the ORDER BY clause

SELECT column[,column]
  ORDER BY column[order_direction]
  LIMIT [row_count]

Example

SELECT COUNT(classification) as Classification_Count,classification AS Classification_Name

FROM STORE('Aggregator-Collector/Microsoft/SharePoint/AparaviSP')

WHERE name LIKE '%project%' OR name LIKE '%.mpp' OR name LIKE '%.mpt'

WHICH CONTAIN ALL SYNONYM ('start') NEAR ('date')

GROUP BY classification

HAVING COUNT(classification)>=100

ORDER BY COUNT(classification) DESC

LIMIT 500

This statement will return

The "classification" Aparavi column
And the count of records by each "classification"
From the AparaviSP node
The column headers will be "Classification_Count" and "Classification_Name"
For Microsoft Project Files or other files with project in the name
Which discuss a starting or beginning date
And the count of each "classification" is at least 100
The full result set will be sorted by the count of each "classification" in descending order
The sorted set will then return only the first 500 records

OFFSET

The OFFSET clause is used to start the record return after so many records. This allows you to get a middle block of records.

When used with ORDER BY , the sort order will be applied first.

SELECT column[,column]
  OFFSET [row_count]

or with the ORDER BY clause

SELECT column[,column]
  ORDER BY column[order_direction]
  OFFSET [row_count]

Example

SELECT COUNT(classification) as Classification_Count,classification AS Classification_Name

FROM STORE('Aggregator-Collector/Microsoft/SharePoint/AparaviSP')

WHERE name LIKE '%project%' OR name LIKE '%.mpp' OR name LIKE '%.mpt'

WHICH CONTAIN ALL SYNONYM ('start') NEAR ('date')

GROUP BY classification

HAVING COUNT(classification)>=100

ORDER BY COUNT(classification) DESC

LIMIT 500

OFFSET 500

This statement will return

The "classification" Aparavi column
And the count of records by each "classification"
From the AparaviSP node
The column headers will be "Classification_Count" and "Classification_Name"
For Microsoft Project Files or other files with project in the name
Which discuss a starting or beginning date
And the count of each "classification" is at least 100
The full result set will be sorted by the count of each "classification" in descending order
The sorted set will then return 500 records
Starting at record 501 (ie record 501 to 1000)
